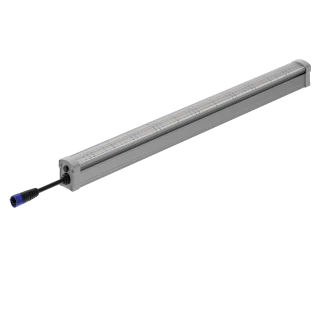

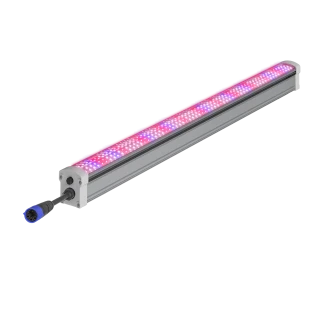

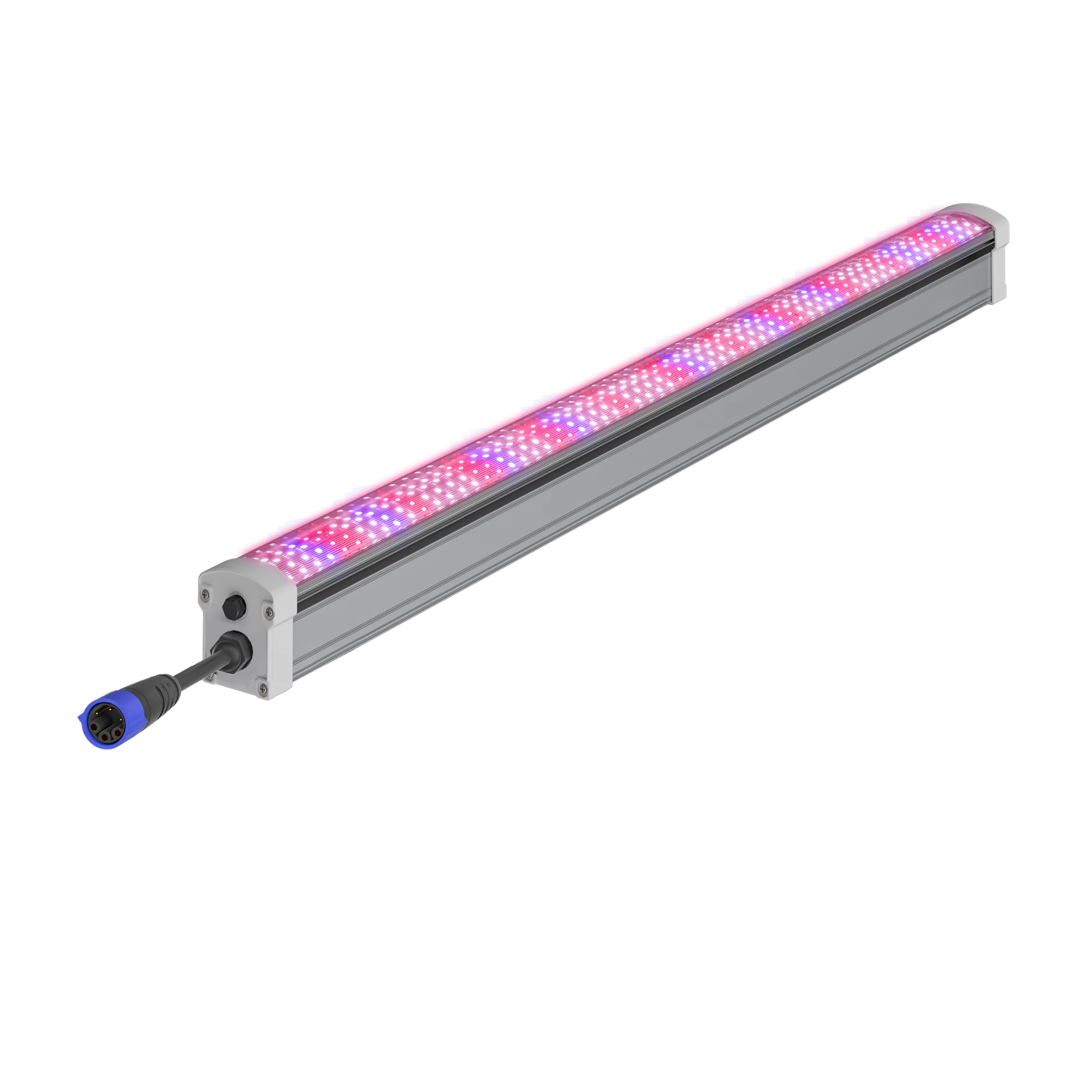

ORTOLED - UNDER CANOPY LED | 120W

The new UNDER CANOPY ORTOLED 120W lamp is designed to improve plant growth and optimise leaf efficiency in shade.

Why is under-canopy lighting necessary?
The lower part of the canopy is dark and increasing the light in that area greatly increases the efficiency of shaded leaves.

It also gives more utility to the otherwise underdeveloped flowers under the canopy. Since the upper part of the foliage will already be
well developed by sunlight or top lighting, additional photons under the canopy may be more productive than additional photons
above the canopy.

Enormous increases in productivity have been found by adding about 200-500 µmol-m²-s-¹ below the canopy. Although these levels are lower
than those above the canopy, they make sufficient use of an otherwise unused area.

Implementing under-canopy lighting with the UNDER CANOPY ORTOLED 120W lamp in your cultivation can be like doubling the cultivation area; there was already a canopy area
above, and with the under-canopy lights, the same canopy area can now be productive below.

Improve your cultivation plans and leave no sprouts. Using our specially designed under-canopy lights, you can maximise
growth and yields by illuminating previously under-illuminated areas of your plant.

Features:

- Improves bud structure, density and colouration B
- Compact and light, easy to handle for harvesting or quick removal between trellis layers
- Optimised full spectrum, tested by growers for vegetative and flowering phase
- IP65 degree of protection for easy cleaning and protection from IPM sprays, irrigation leaks and employees
- Power and data connection via the same connections, no additional cables required

Product details:

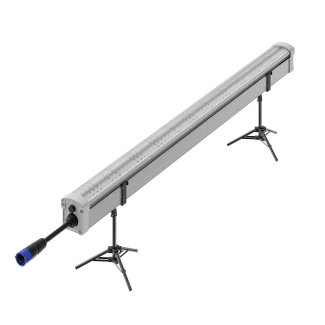

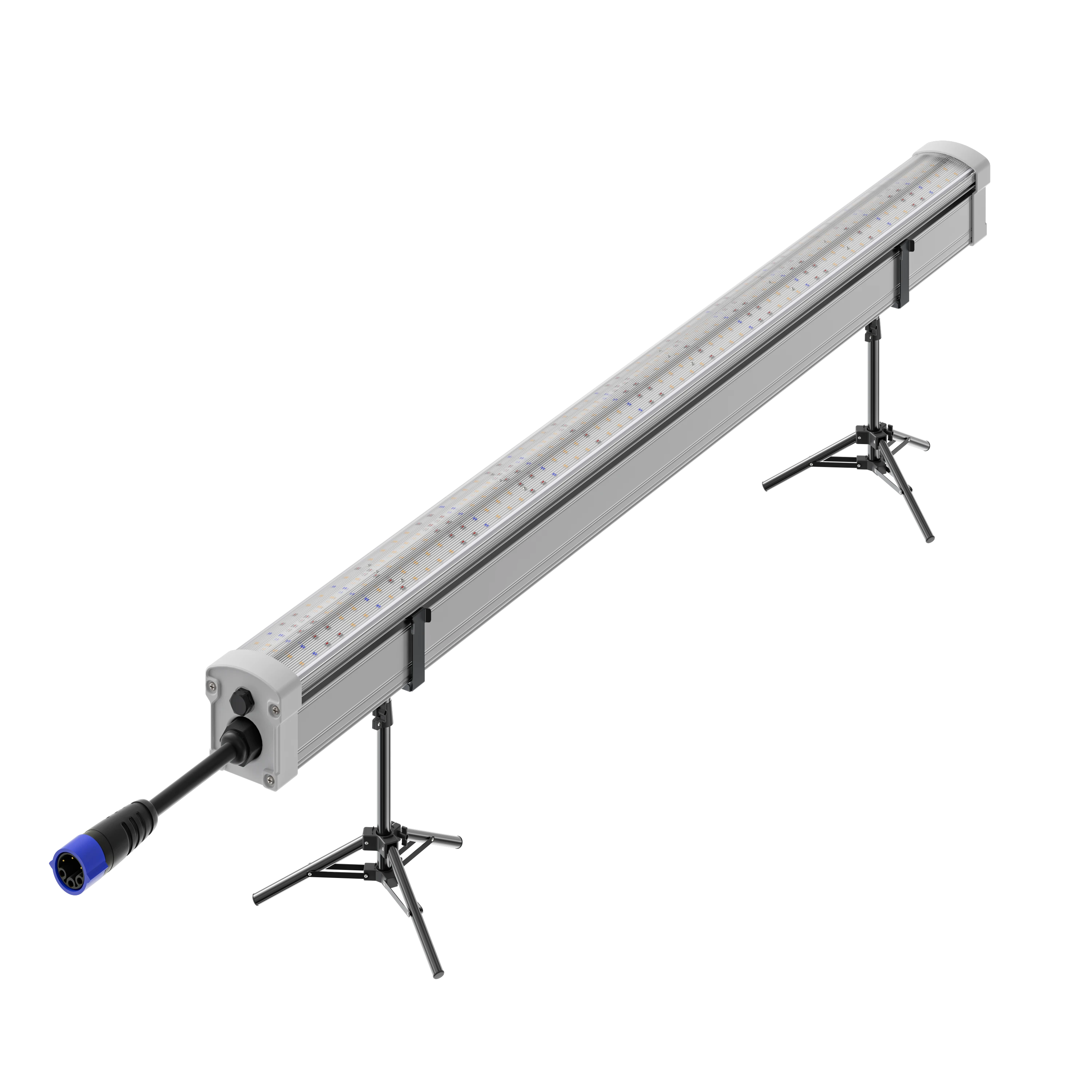

- Optional 1: mounting bracket ×2
- Optional 2: adjustable bracket ×2

Other features:
- High light transmission lens with bubble shape to diffuse light evenly and increase penetration into the foliage
- Aluminium heat sinks for rapid heat dissipation
- Waterproof power port

Technical specifications:

Model ORTOLED UCL 120W

• Amperage 1.00A 0.58A 0.55A 0.43A
• Voltage 120V 208V 220V 277V
• PPE 2.8-3.0 umol/J
• PPF 336-360 umol/s
• Input Power 120W
• lnputVoltage 120-277V AC
• Input Current 0.43-1.00A
• Frequency 50/60 Hz
• Thermal Management Passive
• Ambient Temperture -25-40°C
• Light Distribution 120°
• Lifetime 50,000hrs
• Dimensions 115x7.7x8.1 cm
